Wiring for the Life Stick in buildings with VDSL connection (modem).

Q: Wiring for the Life Stick in buildings with VDSL connection (modem).

■ Wiring for VDSL connections: Please, connect the cables according to the picture below: (Example for NEC modem) ※Some rooms may have different types of modems, the connection method will be the same. ■Modem lamp status: If a connection error message appears, unplug the Life Stick and the modem from the power outlet and try restarting it. If the method above does not improve the situation, please check the lamp status of the modem and contact the Leonet office. LEONET - Internet department: tel:0120-911-521 【Working hours】 Japanese: 24 hours. / English ・ Vietnamese: 10:00～19:00. DASAN① **DASAN②** **NEC**

Question

Accepted Answer

■ Wiring for VDSL connections:

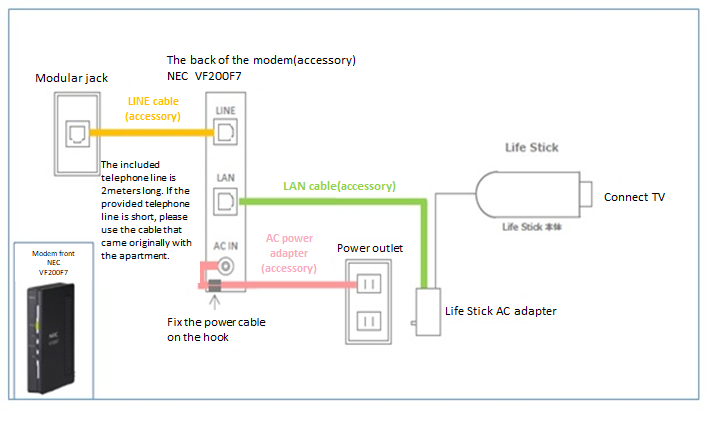

Please, connect the cables according to the picture below: (Example for NEC modem) ※Some rooms may have different types of modems, the connection method will be the same.

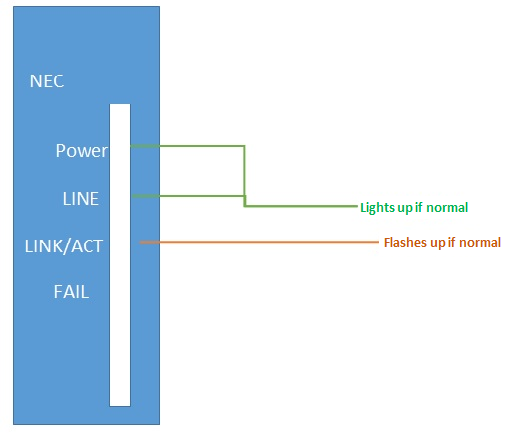

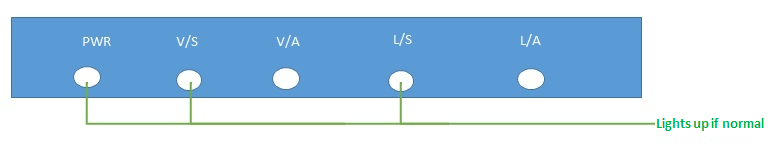

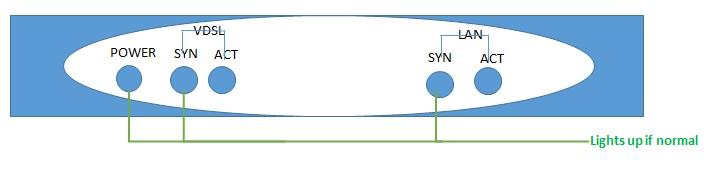

■Modem lamp status:
If a connection error message appears, unplug the Life Stick and the modem from the power outlet and try restarting it.
If the method above does not improve the situation, please check the lamp status of the modem and contact the Leonet office.
LEONET - Internet department: tel:0120-911-521 【Working hours】 Japanese: 24 hours. / English ・ Vietnamese: 10:00～19:00.

DASAN① **DASAN②** **NEC**
