How to set up Windows 10 (Internet connection)

Q

How to set up Windows 10 (Internet connection)

A

Please check the following for "Use Life Stick wireless" and "Wired use of LAN cable connected to PC".

How to set up wireless(wifi) connection.

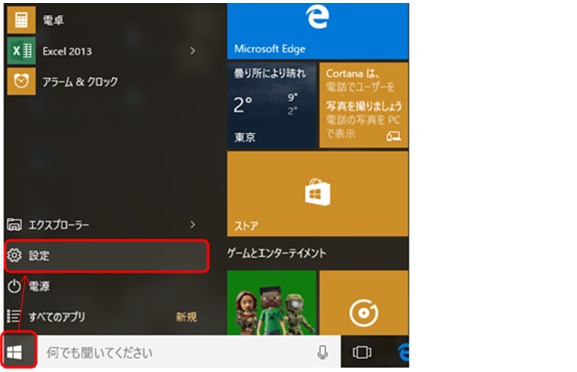

1.Select Windows mark on the left bottom, and select 「設定」(setting) from start menu.


2.After selecting 「設定」(setting), select 「ネットワークとインターネット」(Network and Internet).
3.After selecting 「イーサネット」(Ethernet), select 「ネットワークと共有センター」(Network and Sharing Center).
4.Select 「新しい接続またはネットワークのセットアップ」(New connection or Network setup).
5.Select 「ワイヤレスネットワークに手動で接続します」(Connect to the Wireless Network manually).

6.Enter and select network information. (Please confirm on the right top of the LEONET top page on TV).

Network name: Input the displayed SSID.

Security type: Select 「WPA2-パーソナル」(WPA2-personal).

Encryption type: Not selected

Security key: Input the displayed password.


Setup is completed.

How to set up wired network connection.

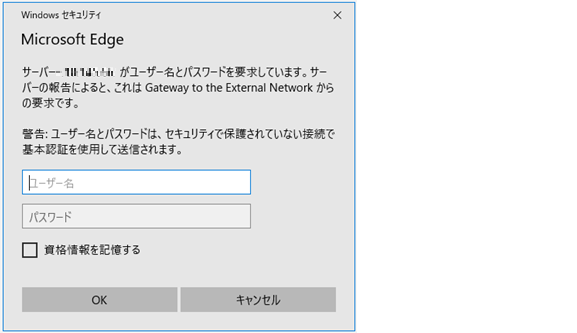

The authentication screen as below is displayed when you connect the LAN cable from the wall to your PC directly or to a Wi-fi router.

In this case, please enter your LEONE ID and password, then you can use the internet.

※The screen may be different depending on devices or OS.


Please check the following to set when the above screen is not displayed.

1.Select the Windows mark on the left bottom on the screen, and select 「設定」(Setting) from the displayed start menu.


2.After selecting 「設定」(settings), select 「ネットワークとインターネット」(Network and Internet).
3.After selecting 「イーサネット」(Ethernet), select 「ネットワークと共有センター」(Network and sharing center).

4.Select 「インターネットオプション」(Internet option) on the left bottom of the screen.


5.Select the "Connection" tab in "Internet Properties" and press "LAN Setting".


6.Confirm that nothing is checked and press "OK" to complete the setting.

Setting is completed.

7.Select「ネットワークとインターネット」(Network and internet) again.


8.Select「アダプターのオプションを変更する」(Change adapter options).


9.Select「ローカルエリア接続」(Connect to local area).

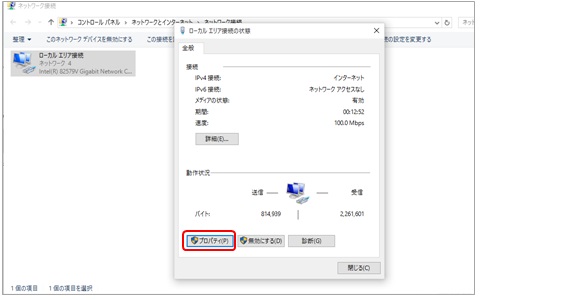

10.Select「プロパティ」(Setting property).

※Select 「続行」 (Continue) if 「ユーザーアカウント制御」(Control user account).


11.Uncheck the check box of 「インターネット プロトコル バージョン6(TCP/lpv6)」(Internet protocol version6).

Select 「インターネット プロトコル バージョン4(TCP/lpv4)」(Internet protocol version4), and select 「プロパティ」(Property).


12.Select 「全般」(General), and check 「IPアドレスを自動的に取得する」(Obtain IP address automatically) and 「DNSサーバーのアドレスを自動的に取得する」(Obtain DNS server address automatically) are selected and press 「OK」. It goes back in 「ローカルエリア接続のプロパティ」(Property of local area connection) screen, then select 「閉じる」(Close).

Customers who have subscribed to Standard plan, Gold plan or Platinum plan have Safety setting support. (Japanese only)
